Pigtail Fiber Access Terminal Optic Splitter Box

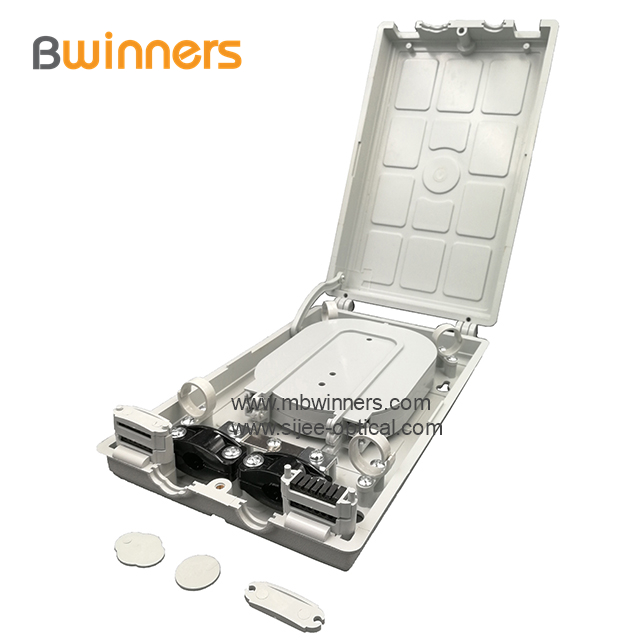

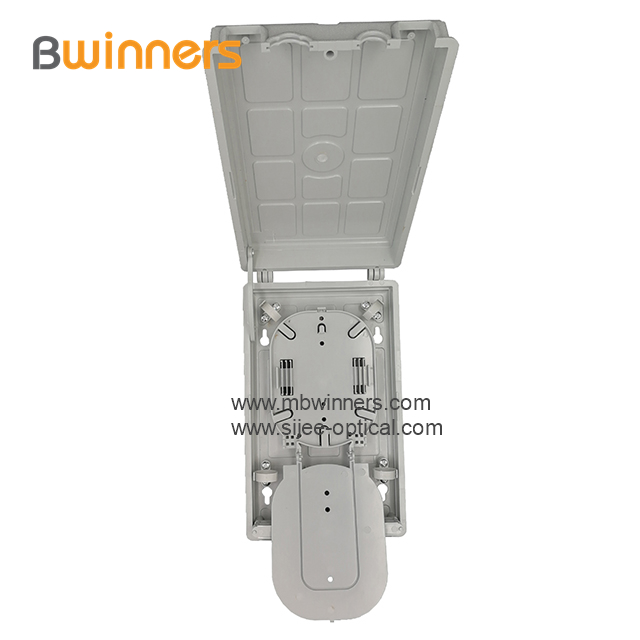

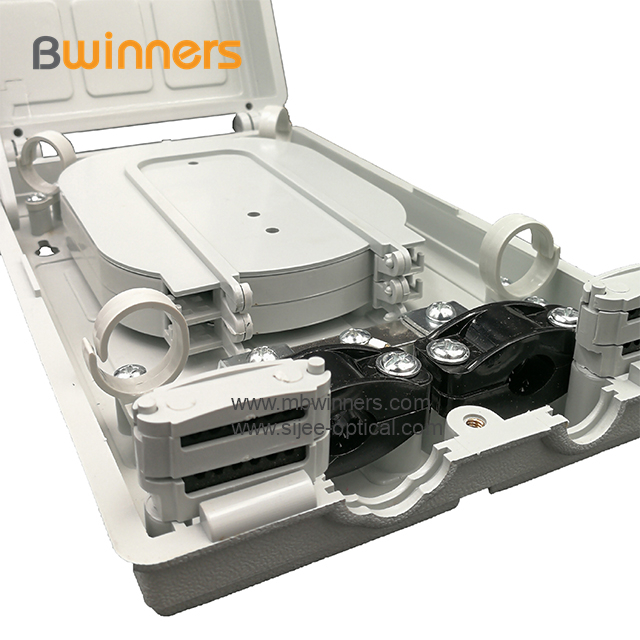

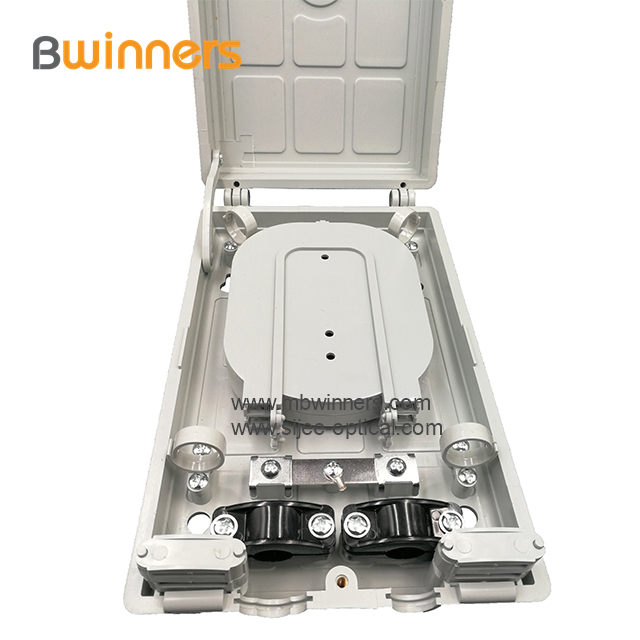

SJ-OTB-SY-02 24 Cores Fiber Optic Termination Box

SJ-OTB-SY-02 Fiber optic termination box suits for jointing fibers with fiber pigtail and it protects fiber optic splices and helps to distribute. SJ-OTB-SY-02 Fiber optic termination box is either a wall-mounting type or desktop type, which is mainly used in the telecommunication equipment room and network equipment room.
Size:26.5X15.5X5.5CM
Max capacity: 24 cores

Applicable fiber cables:
SJ-OTB-SY-02 Fiber optic termination box suitable for splicing one piece of fiber cable with max. Diameter Ø16mm and two portions of fiber cable with max. Diameter Ø 11mm; or 2 parts of fiber cables with diameter Ø16mm.

Features:
(1). The structure of SJ-OTB-SY-02 Fiber optic termination box is innovative, designed in up-down bisection. Its installation is simple. By untightening one piece of fixing nut, it succeeds in opening the housing, and it allows fiber cable and fiber pigtail to pass in and out in the single side.
(2). The house of SJ-OTB-SY-02 Fiber optic termination box is made of high strength polycarbonate plastic materials, which has mechanical strength; therefore it is reliable and long-lasting. It is of excellent shape and beautiful appearance.
(3). The tray is designed in SLIDE-IN-LOCK, and its opening angle is above 90o. Therefore it is easy for installation and maintenance. The curved diameter meets with the international standard. The capacity of the tray is 6-12 cores.
(4). The elastic material is used to fix fiber pigtail. When the end of fiber pigtail cannot be determined (it is not used for the moment), it is possible to wind fiber pigtail into the clasp. Whenever it is needed, the active connector could be installed outside of the housing. Therefore it can connect termination equipment without connecting adapters.

Main points during operation:
(1). While stripping fiber cable, reserve reinforced core with 35mm length. (it is used for the distance from fixing point of fiber cable to fixing device of the reinforced core)
(2). Reserve fiver with a protective coat in 100mm or so (it is used for the distance from fixing point of fiber cable to fixing point of FOST)
(3). After splicing, the initial round of spliced fiber is proposed to put along the inner
(4). Edge of the tray and the rest bending as round with diameter not less than Ø 80mm
(5). Inside the tray, Fiber pigtail could be winded on clasp outside of FOST.
